232 PSIG Pressure Transducer for Onset HOBO MX1105

0–232 psig (0–16 bar) Pressure Transducer Package

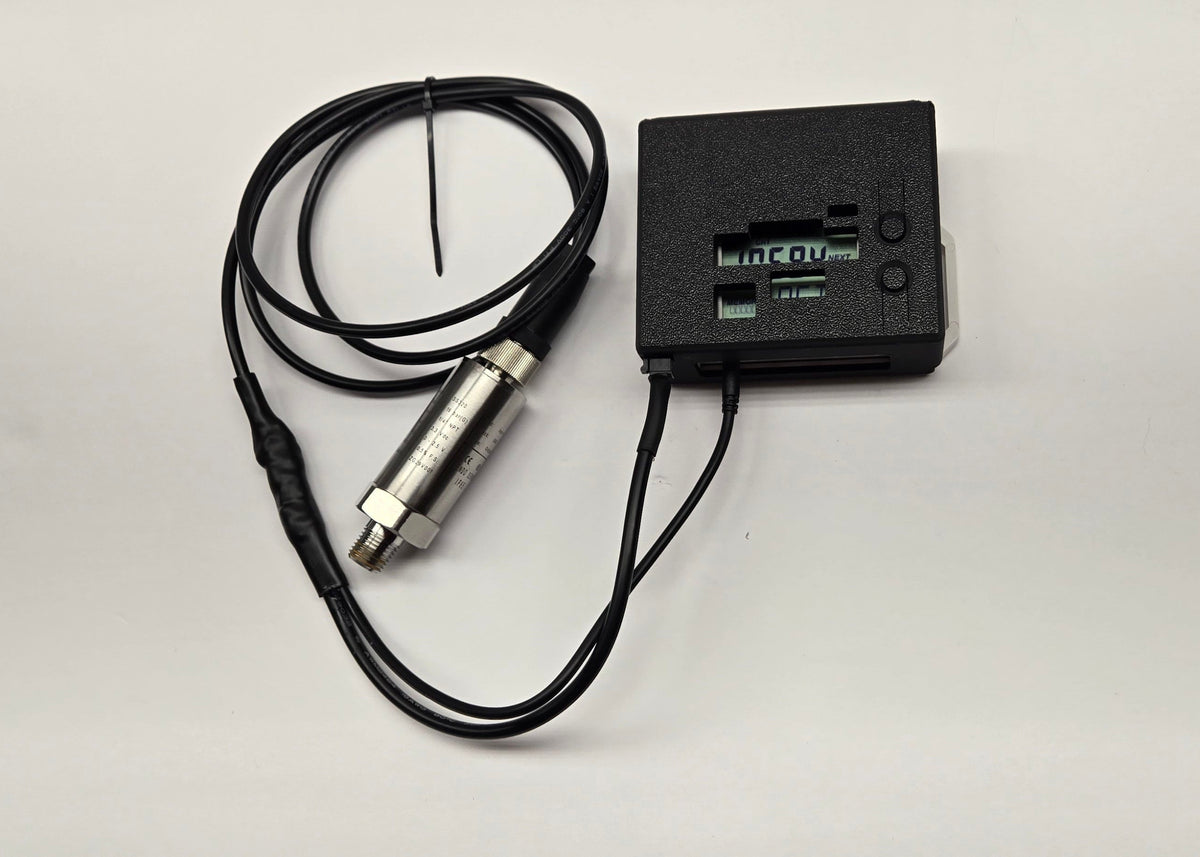

Add pressure measurement to your Onset HOBO MX1105 data logger with this complete pressure transducer package. Designed for monitoring compressed air systems, pumps, water systems, and other industrial pressure applications.

The package includes the pressure transducer, wiring harness, protective MX1105 cover, and a 5000 mAh USB-C rechargeable lithium battery.

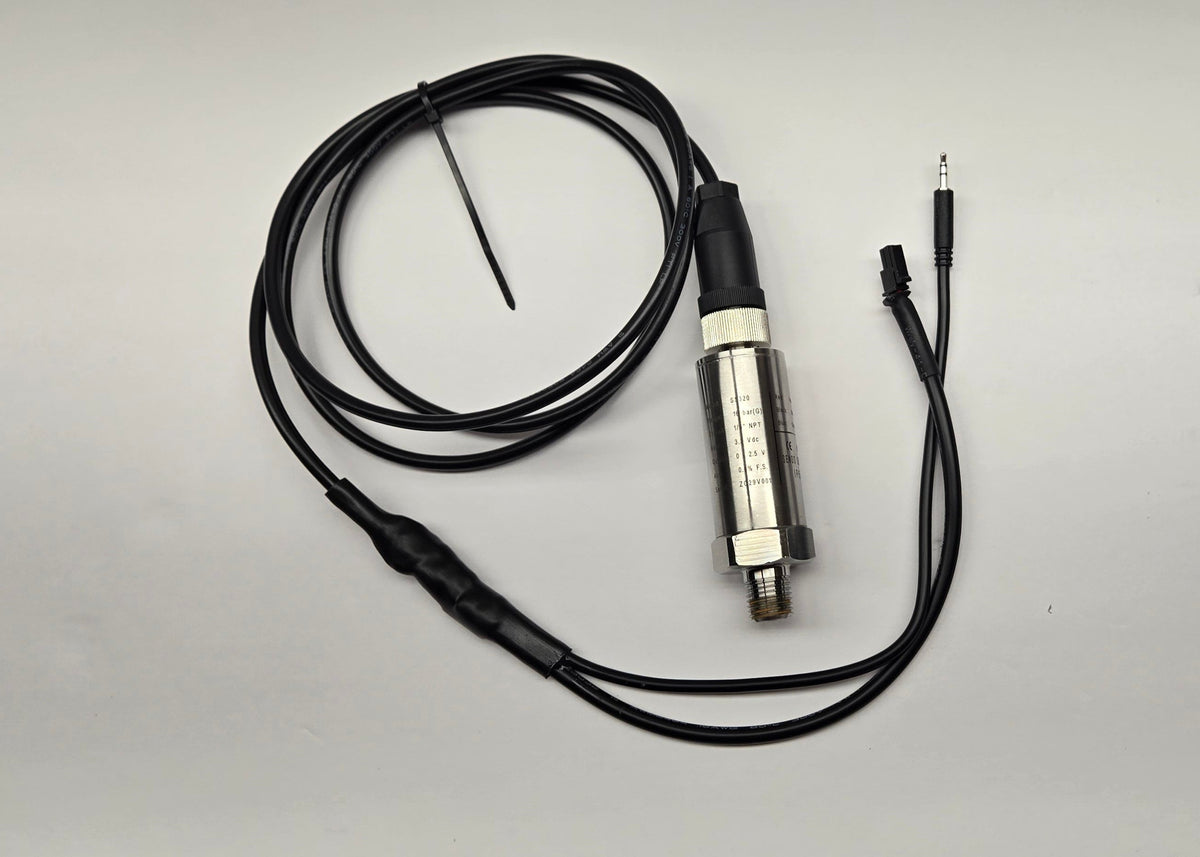

Pressure Transducer Specifications

• Pressure range: 0–232 psig (0–16 bar)
• Pressure connection: 1/4" NPT male
• Output: 0–2.5 V
• Supply voltage: 3.3 VDC
• Accuracy: ±0.5% full scale at 25°C
• Pressure sensor: Piezoresistive silicon
• Wetted parts: 316L stainless steel
• Response time: <4 ms
• Overload pressure: 2× full scale
• Polarity protected
• Short-circuit protected

The transducer is designed to operate directly with the battery supplied voltage and output 0–2.5 V analog as directly read by the MX1105.

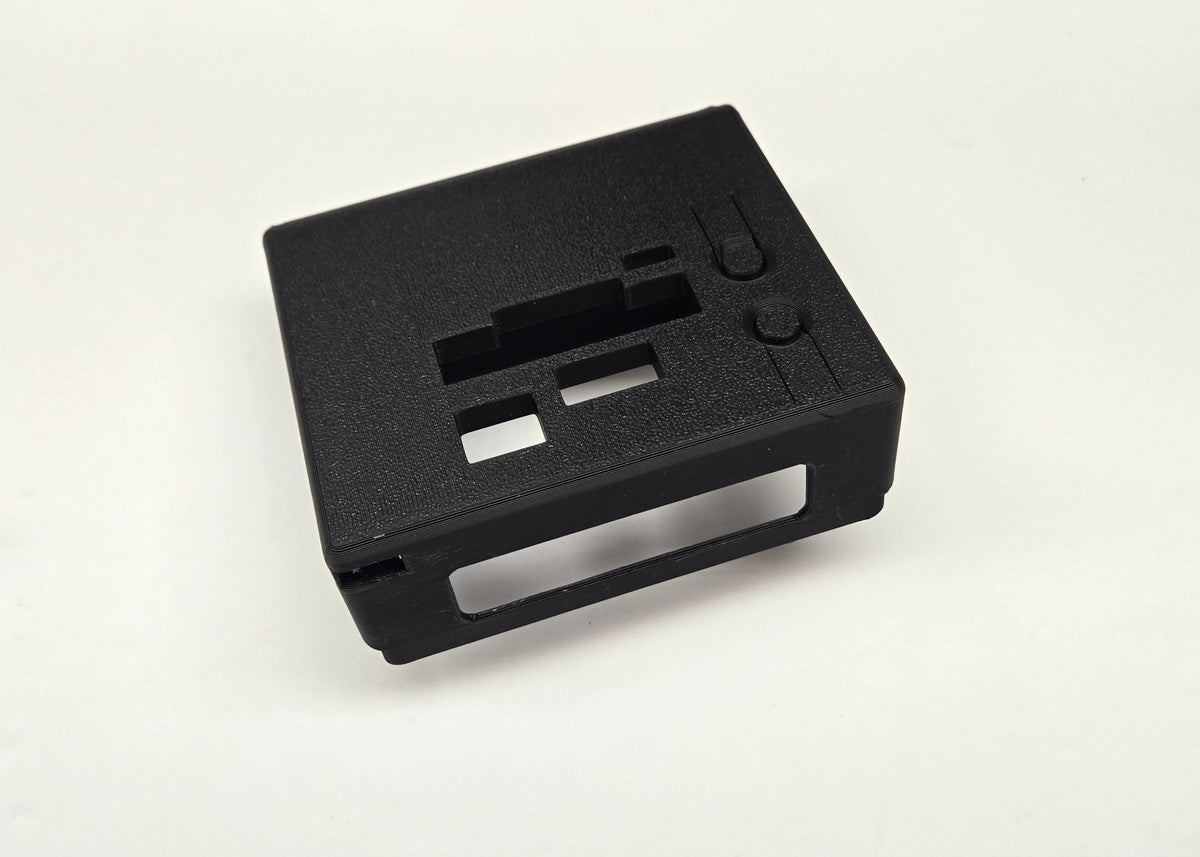

MX1105 Protective Cover

The included custom MX1105 cover:

• Protects the MX1105 display and controls from damage during shipping and field deployment
• Maintains use of the MX1105's built-in magnets for mounting on metal surfaces
• Provides a convenient, compact package for field pressure logging

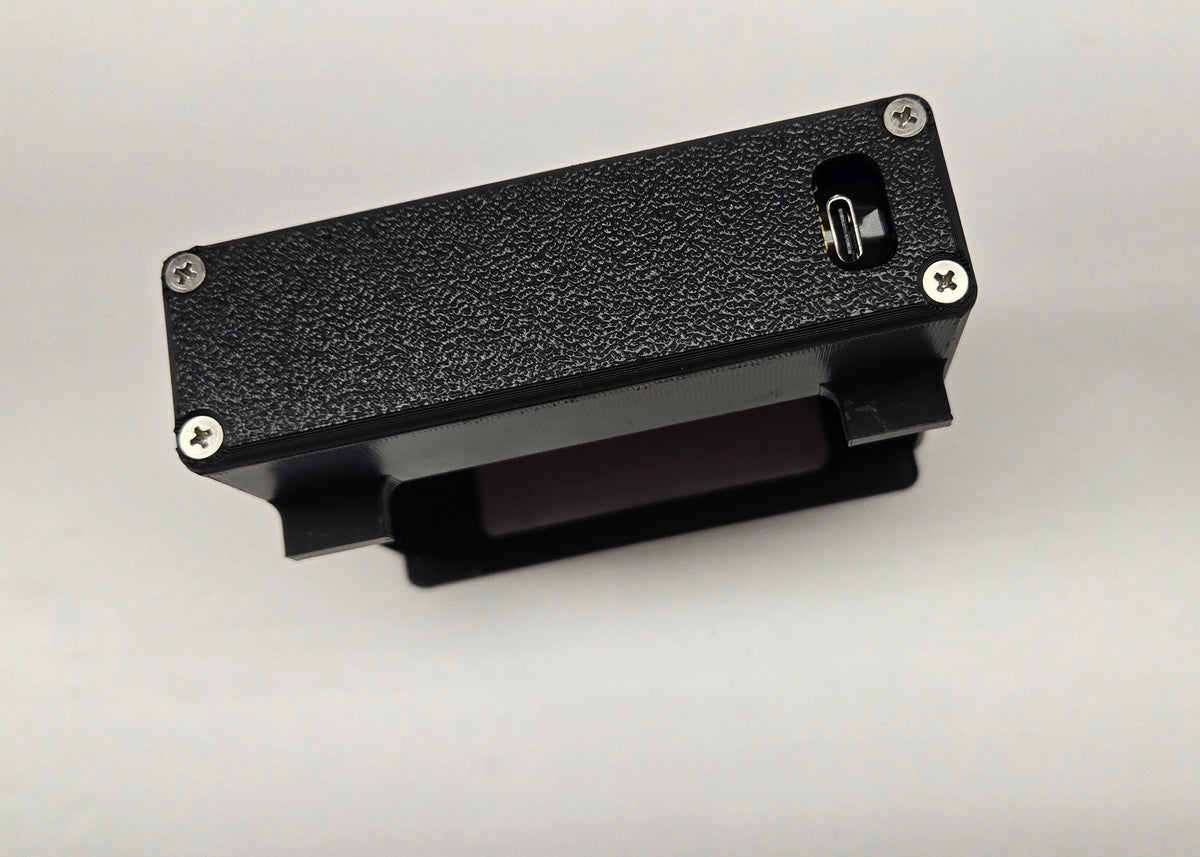

Rechargeable Battery

Includes a 5000 mAh USB-C rechargeable lithium-ion battery.

The USB-C port can be used to:

• Recharge the battery
• Power/recharge the system during logging for extended deployments
• Provide USB power for compatible devices

Estimated battery runtime: approximately 8–10 weeks with one pressure transducer connected. Actual runtime will vary depending on temperature, and operating conditions.

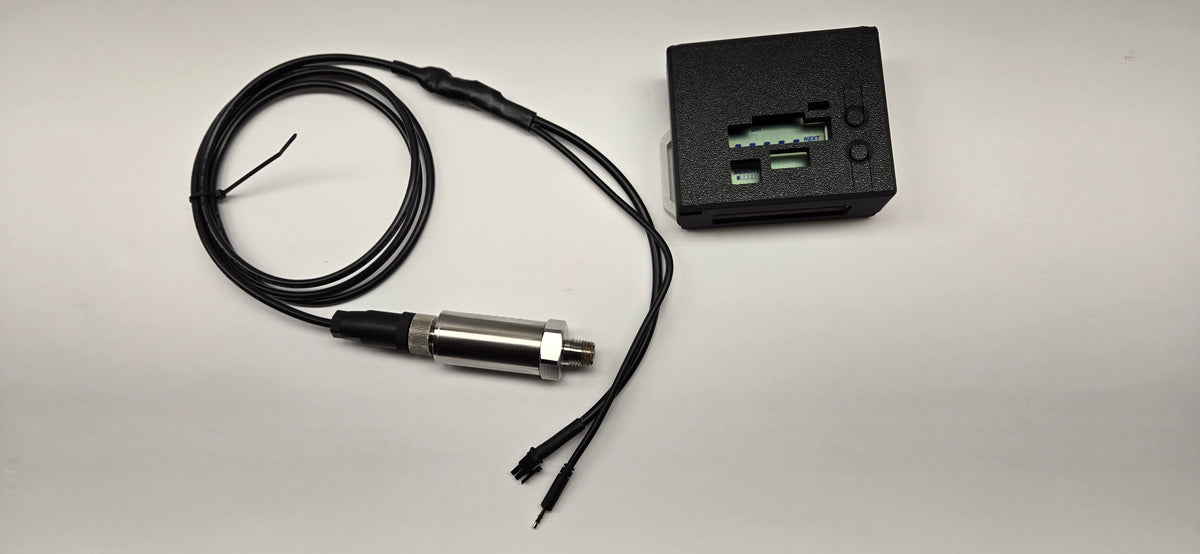

Package Includes

• 0–232 psig (0–16 bar) pressure transducer
• 1/4" NPT male connection
• 0–2.5 V output / 3.3 VDC supply
• Pressure transducer wiring harness with integrated voltage converter
• Custom MX1105 protective cover
• Replaceable 5000 mAh USB-C rechargeable lithium-ion battery.

MX1105 data logger is NOT included. MX1105 data logger sold separately.

Spare batteries and replacement parts are available upon request.

Pre-Order

Estimated lead time: 4–6 weeks for all orders.
